71819CD/HCP4A軸承

SKF

磐固晟是SKF進口軸承經銷，銷售SKF 71819CD/HCP4A軸承，不僅具備價格優勢，而且在供貨及時性、供貨能力方面具有比較優勢，能在最短的時間內為用戶提供原裝進口的SKF 71819CD/HCP4A軸承。

型號：71819CD/HCP4A
品牌：SKF
內徑：95
外徑：120
厚度：13
系列：角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision
【更新日期：2016/8/3 電腦版 71819CD/HCP4A軸承】

71819CD/HCP4A軸承

角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision

公差 , see also text / text 718 (SEA) series

預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series

Recommended fits, shafts, housings

軸和軸承座公差

主要數據尺寸基本負荷額定值疲勞負荷限值可達到的速度體積型號

動態 靜態 當潤滑與 SKF SNFA

油脂滴油潤滑 Listing of both SKF and SNFA designations means that

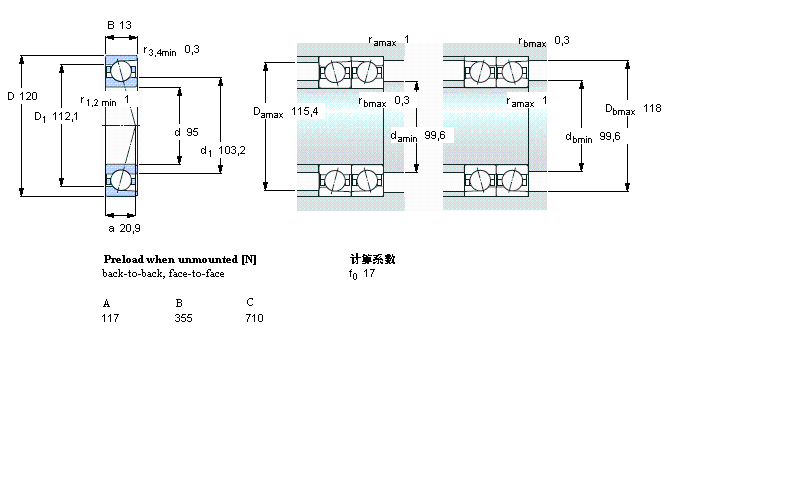

d D B C C₀ P_u

mm kN kN r/min kg -

95 120 13 22,1 27,5 1,12 12000 19000 0,263 71819 CD/HCP4A SEA95 /NS 7CE1

推薦型號


角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision
						公差 , see also text / text 718 (SEA) series
						預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series
						Recommended fits, shafts, housings
						軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	可達到的速度		體積	型號
			動態	靜態		當潤滑與			SKF	SNFA
						油脂	滴油潤滑		Listing of both SKF and SNFA designations means that
d	D	B	C	C₀	P_u

mm			kN		kN	r/min		kg	-

95	120	13	22,1	27,5	1,12	12000	19000	0,263	71819 CD/HCP4A	SEA95 /NS 7CE1
