BEAM030100-2RS軸承

SKF

磐固晟是SKF進口軸承經銷，銷售SKF BEAM030100-2RS軸承，不僅具備價格優勢，而且在供貨及時性、供貨能力方面具有比較優勢，能在最短的時間內為用戶提供原裝進口的SKF BEAM030100-2RS軸承。

型號：BEAM030100-2RS
品牌：SKF
內徑：30
外徑：100
厚度：38
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【更新日期：2016/8/3 電腦版 BEAM030100-2RS軸承】

BEAM030100-2RS軸承

角接觸推力球軸承 for screw drives, double direction, for bolt mounting

公差, inner rings, outer rings, see also text

Preload, see specific bearing, see also text

Shaft fits, housing fits

軸和軸承座公差

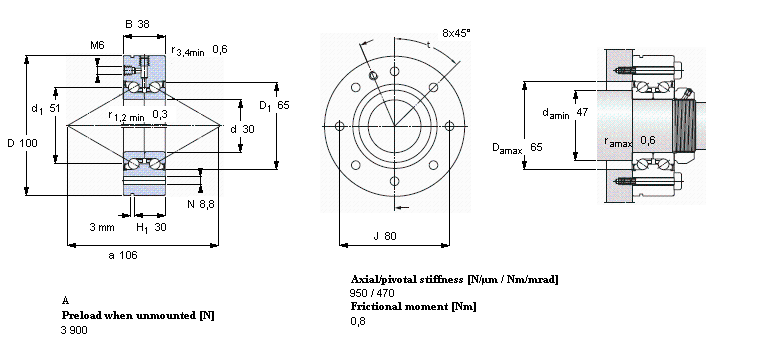

主要數據尺寸基本負荷額定值疲勞負荷限值 Attainable speed 體積型號

動態 靜態 SKF SNFA

d D H C C₀ P_u

mm kN kN r/min kg -

30 100 38 60 108 4 2600 1,65 BEAM 030100-2RS BEAM 30/100/C 7P60

推薦型號


角接觸推力球軸承 for screw drives, double direction, for bolt mounting
							公差, inner rings, outer rings, see also text
							Preload, see specific bearing, see also text
							Shaft fits, housing fits
							軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	Attainable speed	體積	型號
			動態	靜態				SKF	SNFA

d	D	H	C	C₀	P_u

mm			kN		kN	r/min	kg	-

30	100	38	60	108	4	2600	1,65	BEAM 030100-2RS	BEAM 30/100/C 7P60
