S7007CD/HCP4A軸承

SKF

磐固晟是SKF進口軸承經銷商，不僅為工業配套用戶提供SKF S7007CD/HCP4A軸承，在維修市場也提供足夠的支持，是SKF軸承在國內的優質經銷商之一，購買SKF S7007CD/HCP4A軸承，磐固晟是您放心的選擇。

型號：S7007CD/HCP4A
品牌：SKF
內徑：35
外徑：62
厚度：14
系列：角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid
【更新日期：2016/8/3 電腦版 S7007CD/HCP4A軸承】

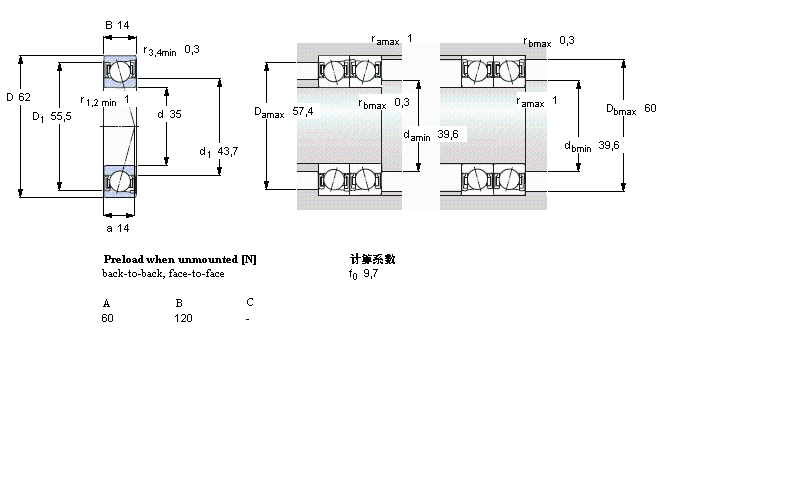

S7007CD/HCP4A軸承

角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid

公差 , see also text / text 718 (SEA) series

預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series

Recommended fits, shafts, housings

軸和軸承座公差

主要數據尺寸基本負荷額定值疲勞負荷限值可達到的速度體積型號

動態 靜態 當潤滑與 SKF SNFA

油脂滴油潤滑 Listing of both SKF and SNFA designations means that

d D B C C₀ P_u

mm kN kN r/min kg -

35 62 14 15,6 9,5 0,4 28000 - 0,13 S7007 CD/HCP4A -

推薦型號


角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid
						公差 , see also text / text 718 (SEA) series
						預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series
						Recommended fits, shafts, housings
						軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	可達到的速度		體積	型號
			動態	靜態		當潤滑與			SKF	SNFA
						油脂	滴油潤滑		Listing of both SKF and SNFA designations means that
d	D	B	C	C₀	P_u

mm			kN		kN	r/min		kg	-

35	62	14	15,6	9,5	0,4	28000	-	0,13	S7007 CD/HCP4A	-
