SC71918FB/P7軸承

SKF

訂購SKF SC71918FB/P7軸承，請隨時與我們聯系，我們將根據匯率的波動為您提供實時準確的價格，確保以最優惠的價格為您提供優質的SKF SC71918FB/P7軸承。

型號：SC71918FB/P7
品牌：SKF
內徑：90
外徑：125
厚度：18
系列：角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
【更新日期：2016/8/3 電腦版 SC71918FB/P7軸承】

SC71918FB/P7軸承

角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid

公差 , see also text / text 718 (SEA) series

預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series

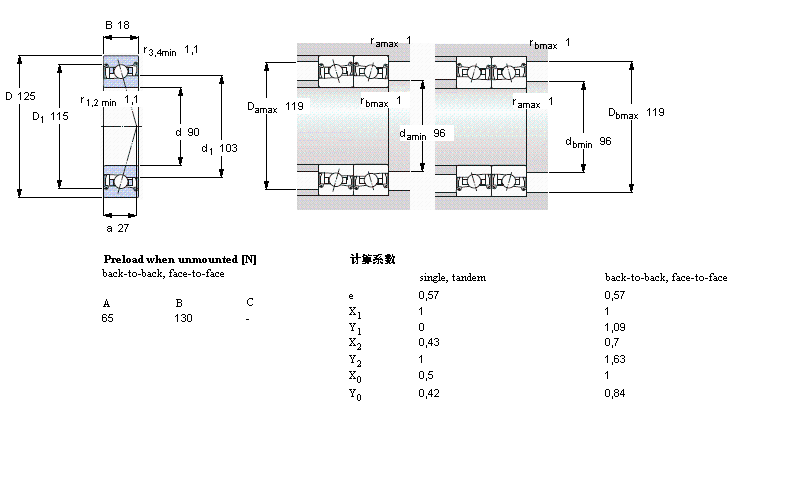

Recommended fits, shafts, housings

軸和軸承座公差

主要數據尺寸基本負荷額定值疲勞負荷限值可達到的速度體積型號

動態 靜態 當潤滑與 SKF SNFA

油脂滴油潤滑 Listing of both SKF and SNFA designations means that

d D B C C₀ P_u

mm kN kN r/min kg -

90 125 18 23,4 30,5 1,25 14000 - 0,54 SC71918 FB/P7 -

推薦型號


角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
						公差 , see also text / text 718 (SEA) series
						預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series
						Recommended fits, shafts, housings
						軸和軸承座公差

主要數據尺寸			基本負荷額定值		疲勞負荷限值	可達到的速度		體積	型號
			動態	靜態		當潤滑與			SKF	SNFA
						油脂	滴油潤滑		Listing of both SKF and SNFA designations means that
d	D	B	C	C₀	P_u

mm			kN		kN	r/min		kg	-

90	125	18	23,4	30,5	1,25	14000	-	0,54	SC71918 FB/P7	-
