BSA215CG軸承
SKF進口軸承代理鼎力晟業為用戶提供高品質的BSA215CG軸承，無論是工業配套還是維修市場，用戶都可以在這里找到貨期最短的SKF BSA215CG軸承，確保您的不間斷生產。
型號：BSA215CG
品牌：SKF
內徑：75
外徑：130
厚度：25
系列：角接觸推力球軸承 for screw drives, single direction
【
手機版 BSA215CG軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：[email protected]

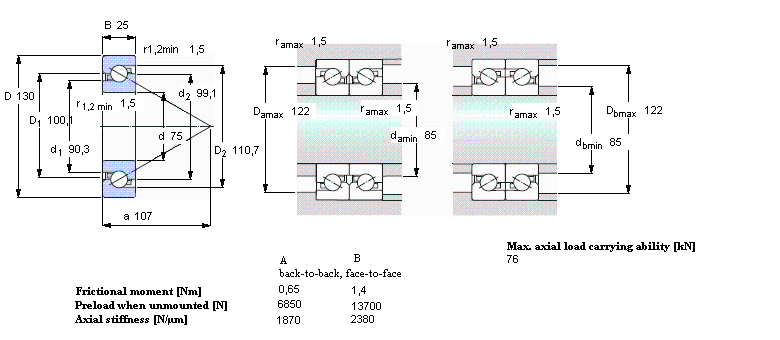

SKF BSA215CG尺寸圖紙
BSA215CG軸承基本參數
| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 75 | 130 | 25 | 72 | 245 | 9,15 | 4300 | 5000 | 1,45 | BSA 215 CG | BS 275 7P62U | |
