BEAM050115-2Z軸承
BEAM050115-2Z軸承是SKF公司同時面向工業配套和維修市場的產品，鼎力晟業同時代理此兩項業務，不僅為批量采購的用戶提供優惠的SKF BEAM050115-2Z軸承，同時也為零散采購用戶提供價格優惠的及時供貨服務。
型號：BEAM050115-2Z
品牌：SKF
內徑：50
外徑：115
厚度：34
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM050115-2Z軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：[email protected]

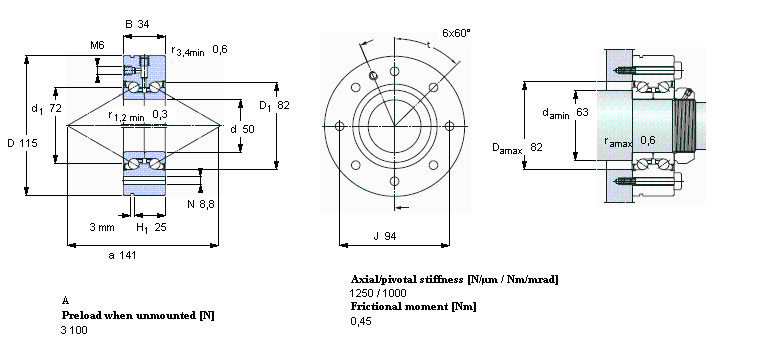

SKF BEAM050115-2Z尺寸圖紙
BEAM050115-2Z軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 50 | 115 | 34 | 46,8 | 127 | 4,65 | 3600 | 1,85 | BEAM 050115-2Z | BEAM 50/115/Z 7P60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
